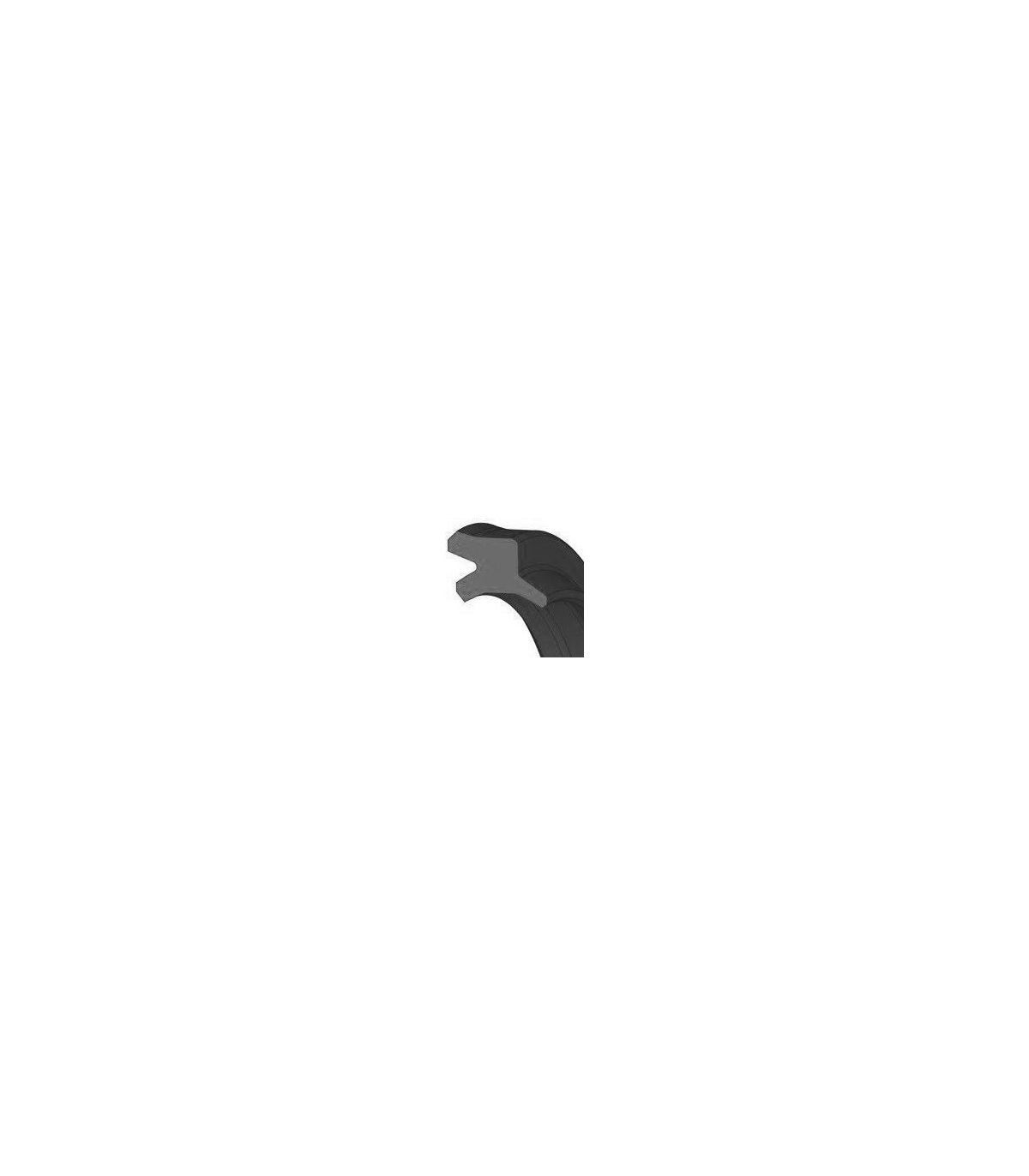

Polyurethane collar scraper
It is used to prevent the entry of contaminants (dust, particles, liquids) into hydraulic or pneumatic cylinders.
It is characterized by its collar shape, which fits around an axis or stem, and by being made of polyurethane, a flexible and resistant material.
Applications: Hydraulic and pneumatic cylinders, Shock absorbers, Transmission shafts, Industrial machinery.
Technical data sheet:
Double-lip scraper, one for sealing and the other for scraping. Single-acting.
Made of polyurethane. 95 Shore
Speed 1 mt/sg.
Temperature -30ºC / 110ºC
IF YOU DO NOT FIND THE DESIRED SIZE, CONTACT US
| Reference | INSIDE DIAMETER | EXTERNAL DIAMETER | THICKNESS | Price | Add to cart |
|---|---|---|---|---|---|
| 8038000 | 14 | 20 | 4 |
€2.56
|
|
| 8038001 | 16 | 24 | 4 |
€2.56
|
|
| 8038002 | 18 | 24 | 4 |
€2.56
|
|
| 8038003 | 22 | 30 | 4 |
€2.56
|
|
| 8038004 | 26 | 34 | 4 |
€3.22
|
|
| 8038005 | 35 | 43 | 4 |
€3.84
|
|
| 8038006 | 40 | 48 | 4 |
€3.84
|
|
| 8038007 | 45 | 53 | 5 |
€4.48
|
|
| 8038008 | 55 | 63 | 5 |
€6.46
|
|
| 8038009 | 63 | 71 | 5 |
€8.32
|
|
| 8038010 | 70 | 78 | 5 |
€12.86
|
|
| 8038011 | 75 | 83 | 4 |
€14.08
|
|
| 8038012 | 100 | 108 | 5 |
€16.64
|
|
| 8038013 | 105 | 117 | 6 |
€21.76
|
|
| 8038014 | 115 | 127 | 6 |
€21.76
|
|
| 8038015 | 120 | 132 | 8 |
€21.76
|
|
| 8038016 | 150 | 162 | 8 |
€22.88
|
|
