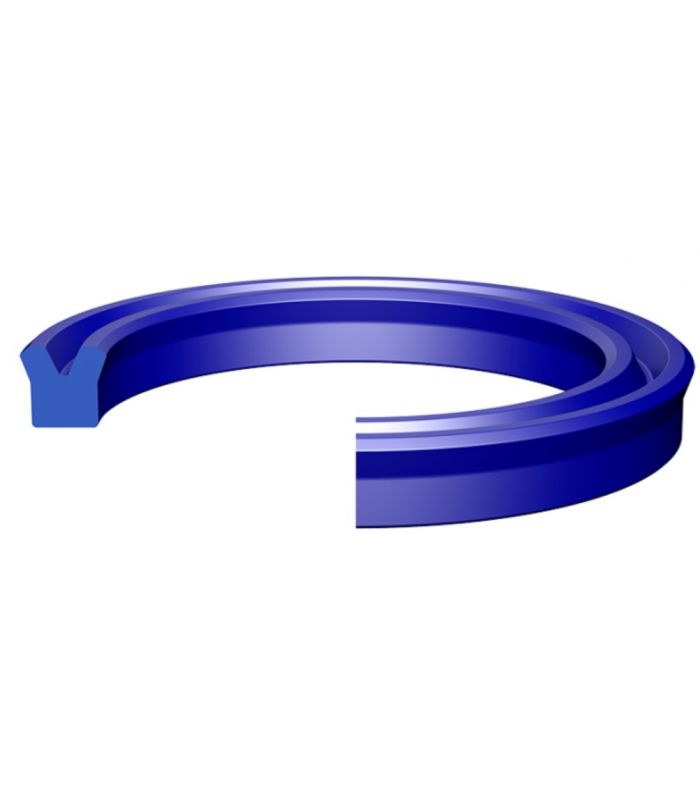

Symmetrical polyurethane collar
Symmetrical seals are used in hydraulic and pneumatic cylinders for fluid sealing. They are housed within the cylinder head and seal against the cylinder rod, preventing fluid from flowing through the cylinder head. This allows pressure to build up on one side of the piston, causing the cylinder to extend or retract.
Technical data sheet:
Symmetrical profile lip seal with closing edge on the dynamic side, single acting.
Made of polyurethane, 94 Shore
Speed 0.5 m/sec.
Temperature -35ºC / 100ºC
IF YOU DO NOT FIND THE DESIRED SIZE, CONTACT US
| Reference | INSIDE DIAMETER | EXTERNAL DIAMETER | THICKNESS | Price | Add to cart |
|---|---|---|---|---|---|
| 8035000 | 6 | 12 | 4 |
€2.80
|
|
| 8035001 | 6 | 12 | 6 |
€2.80
|
|
| 8035002 | 6 | 12 | 8 |
€2.80
|
|
| 8035003 | 8 | 14 | 6 |
€2.80
|
|
| 8035004 | 8 | 16 | 6 |
€2.80
|
|
| 8035005 | 8 | 22 | 8 |
€2.80
|
|
| 8035006 | 10 | 16 | 6 |
€2.80
|
|
| 8035007 | 10 | 20 | 8 |
€3.36
|
|
| 8035008 | 10 | 22 | 8 |
€3.36
|
|
| 8035009 | 12 | 18 | 6 |
€3.36
|
|
| 8035010 | 12 | 20 | 8 |
€3.36
|
|
| 8035011 | 12 | 22 | 8 |
€3.92
|
|
| 8035012 | 12 | 25 | 8 |
€3.92
|
|
| 8035013 | 12 | 25 | 10 |
€3.92
|
|
| 8035014 | 14 | 22 | 8 |
€3.36
|
|
| 8035015 | 14 | 24 | 8 |
€3.36
|
|
| 8035016 | 14 | 30 | 8 |
€3.92
|
|
| 8035017 | 15 | 25 | 8 |
€3.92
|
|
| 8035018 | 15 | 30 | 8 |
€3.36
|
|
| 8035019 | 16 | 22 | 4 |
€3.36
|
|
| 8035020 | 16 | 24 | 6 |
€3.36
|
|
| 8035021 | 16 | 26 | 8 |
€3.92
|
|
| 8035022 | 16 | 32 | 8 |
€4.48
|
|
| 8035023 | 18 | 26 | 6 |
€3.92
|
|
| 8035024 | 18 | 28 | 8 |
€3.92
|
|
| 8035025 | 18 | 30 | 8 |
€3.92
|
|
| 8035026 | 20 | 28 | 8 |
€3.92
|
|
| 8035027 | 20 | 30 | 8 |
€3.92
|
|
| 8035028 | 20 | 30 | 10 |
€3.92
|
|
| 8035029 | 20 | 32 | 8 |
€3.92
|
|
| 8035030 | 20 | 40 | 10 |
€6.72
|
|
| 8035031 | 22 | 28 | 8 |
€3.92
|
|
| 8035032 | 22 | 30 | 6 |
€3.92
|
|
| 8035033 | 22 | 32 | 10 |
€3.92
|
|
| 8035034 | 25 | 45 | 10 |
€7.28
|
|
| 8035035 | 28 | 38 | 8 |
€3.92
|
|
| 8035036 | 28 | 38 | 10 |
€4.48
|
|
| 8035037 | 30 | 38 | 8 |
€4.48
|
|
| 8035038 | 30 | 40 | 6 |
€4.48
|
|
| 8035039 | 30 | 40 | 10 |
€4.48
|
|
| 8035040 | 30 | 45 | 10 |
€6.72
|
|
| 8035041 | 32 | 40 | 6 |
€5.60
|
|
| 8035042 | 32 | 42 | 8 |
€5.60
|
|
| 8035043 | 32 | 50 | 10 |
€7.84
|
|
| 8035044 | 35 | 45 | 8 |
€5.60
|
|
| 8035045 | 35 | 45 | 10 |
€5.60
|
|
| 8035046 | 40 | 50 | 6 |
€5.60
|
|
| 8035047 | 40 | 50 | 8 |
€5.60
|
|
| 8035048 | 40 | 50 | 10 |
€5.60
|
|
| 8035049 | 40 | 60 | 10 |
€5.60
|
|
| 8035050 | 40 | 65 | 12 |
€12.88
|
|
| 8035051 | 42 | 50 | 10 |
€5.60
|
|
| 8035052 | 45 | 55 | 6 |
€5.60
|
|
| 8035053 | 45 | 55 | 10 |
€6.16
|
|
| 8035054 | 45 | 63 | 10 |
€8.40
|
|
| 8035055 | 45 | 65 | 10 |
€8.40
|
|
| 8035056 | 48 | 58 | 10 |
€10.64
|
|
| 8035057 | 50 | 60 | 6 |
€5.60
|
|
| 8035058 | 50 | 60 | 8 |
€5.60
|
|
| 8035059 | 50 | 60 | 10 |
€6.72
|
|
| 8035060 | 50 | 63 | 6 |
€5.60
|
|
| 8035061 | 50 | 63 | 8 |
€6.16
|
|
| 8035062 | 50 | 65 | 10 |
€7.28
|
|
| 8035063 | 53 | 63 | 7 |
€5.60
|
|
| 8035064 | 55 | 65 | 8 |
€6.16
|
|
| 8035065 | 55 | 65 | 10 |
€6.72
|
|
| 8035066 | 55 | 70 | 10 |
€8.40
|
|
| 8035067 | 65 | 85 | 12 |
€14.56
|
|
| 8035068 | 70 | 80 | 12 |
€14.56
|
|
| 8035069 | 75 | 85 | 12 |
€11.20
|
|
| 8035070 | 75 | 90 | 12 |
€11.20
|
|
| 8035071 | 75 | 100 | 15 |
€25.20
|
|
| 8035072 | 80 | 90 | 10 |
€11.20
|
|
| 8035073 | 80 | 100 | 12 |
€17.92
|
|
| 8035074 | 85 | 110 | 15 |
€22.40
|
|
| 8035075 | 90 | 110 | 12 |
€19.60
|
|
| 8035076 | 90 | 120 | 18 |
€22.40
|
|
| 8035077 | 95 | 115 | 12 |
€18.48
|
|
| 8035078 | 95 | 120 | 15 |
€27.44
|
|
| 8035079 | 100 | 115 | 12 |
€16.80
|
|
| 8035080 | 100 | 120 | 15 |
€23.52
|
|
| 8035081 | 100 | 125 | 15 |
€31.36
|
|
| 8035082 | 110 | 125 | 15 |
€21.28
|
|
| 8035083 | 115 | 135 | 15 |
€29.12
|
|
| 8035084 | 120 | 140 | 15 |
€33.60
|
|
| 8035085 | 125 | 140 | 15 |
€23.52
|
|
| 8035086 | 125 | 150 | 15 |
€40.32
|
|
| 8035087 | 130 | 160 | 15 |
€50.40
|
|
| 8035088 | 140 | 160 | 15 |
€35.28
|
|
| 8035089 | 150 | 180 | 18 |
€67.20
|
|
| 8035090 | 180 | 200 | 15 |
€40.88
|
|
