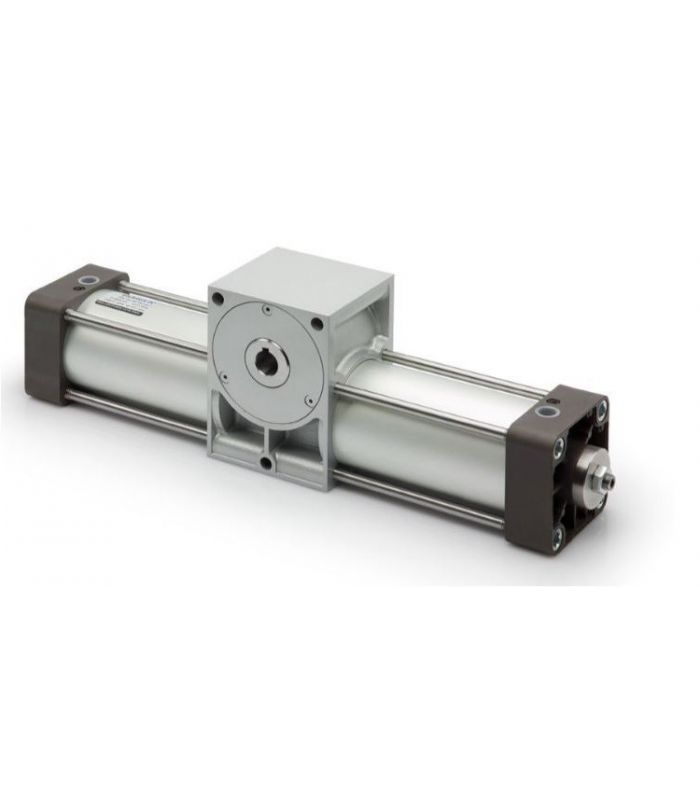

FEMALE SHAFT TURN CYLINDER
FEMALE SHAFT TURN CYLINDER
FEMALE SHAFT TURN CYLINDER
FEMALE SHAFT TURN CYLINDER

FEMALE SHAFT TURN CYLINDER

Female outlet swing cylinder

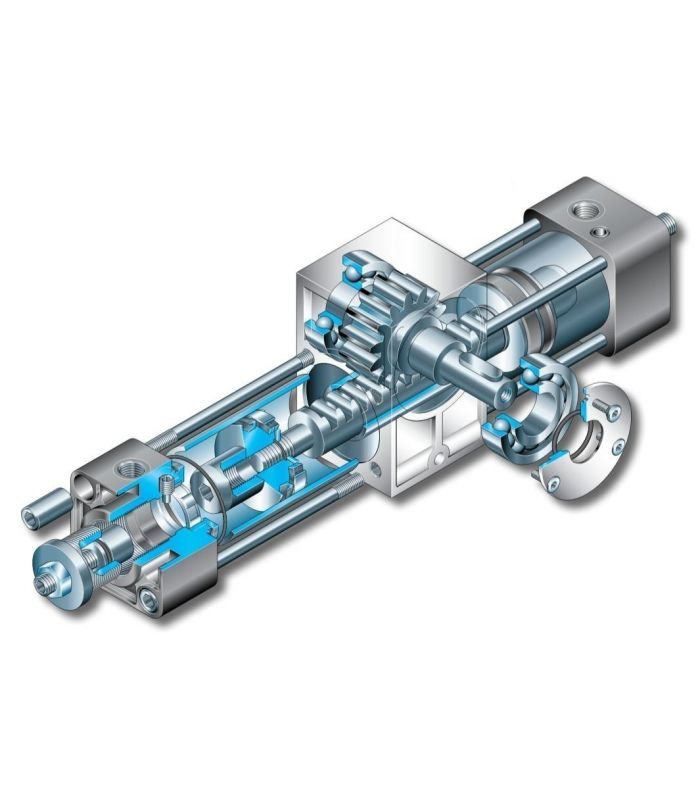

  • The rotary cylinders have been designed to transform the rectilinear movement characteristic of the pneumatic cylinder into rotary movement through a rack-pinion gear.
  • The cylinder adopts the same pneumatic damping system typical of the traditional cylinder and there can be a mechanical adjustment to adjust the angle by +/- 5°.
  • Double cushioned effect
  • Can be supplied with rotation regulation
  • Working pressure 1-10 bar.
  • Temperature -20 / 80ºC.
  • Compatible fluids: filtered compressed air.
  • Availability of diameters from 32 to 100 mm.
  • 3 turning positions. 90º-180º-360º

Buy online FEMALE SHAFT TURN CYLINDER at the best price

€422.65 (tax included)
€349.30 (tax excl.)
CHOOSE MODEL/COLOR
  • Ø32-90º
  • Ø32-180º
  • Ø32-360º
  • Ø40-90º
  • Ø40-180º
  • Ø40-360º
  • Ø50-90º
  • Ø50-180º
  • Ø50-360º
  • Ø63-90º
  • Ø63-180º
  • Ø63-360º
  • Ø80-90º
  • Ø80-180º
  • Ø80-360º
  • Ø100-90º
  • Ø100-180º
  • Ø100-360º
Reference:
500800101
Consult price for large quantities
Description

CILINDRO DE GIRO EJE HEMBRACILINDRO DE GIRO EJE HEMBRA

Product Details
500800101
Reference COLOR Price Add to cart
500800101 Ø32-90º
€349.30
500800111 Ø32-180º
€394.80
500800131 Ø32-360º
€462.00
500800141 Ø40-90º
€388.50
500800151 Ø40-180º
€441.70
500800171 Ø40-360º
€527.80
500800181 Ø50-90º
€422.80
500800191 Ø50-180º
€475.30
500800211 Ø50-360º
€595.00
500800221 Ø63-90º
€529.20
500800231 Ø63-180º
€595.70
500800251 Ø63-360º
€733.60
500800261 Ø80-90º
€579.60
500800271 Ø80-180º
€660.80
500800291 Ø80-360º
€853.30
500800301 Ø100-90º
€751.80
500800311 Ø100-180º
€840.00
500800331 Ø100-360º
€1,050.00
