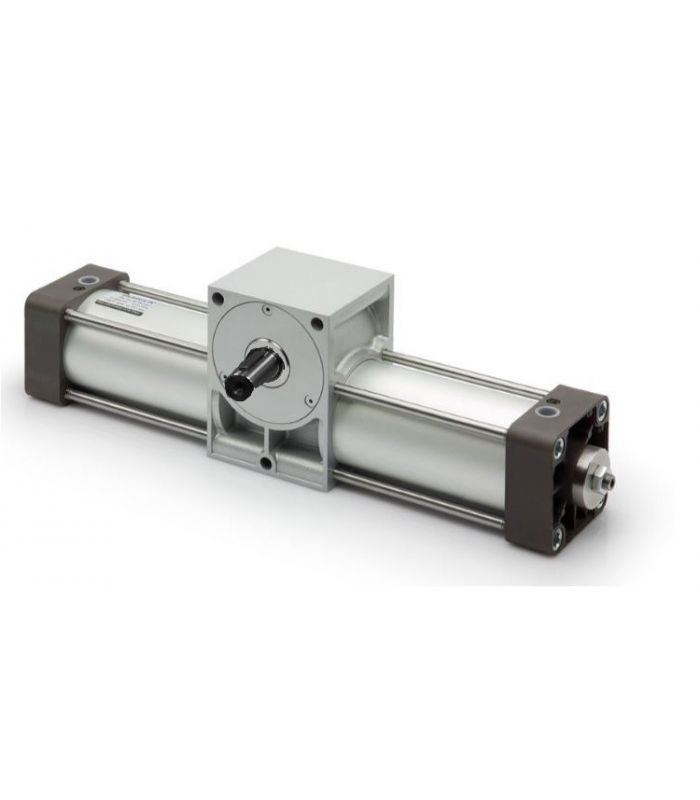

MALE SHAFT TURN CYLINDER
MALE SHAFT TURN CYLINDER
MALE SHAFT TURN CYLINDER
MALE SHAFT TURN CYLINDER

MALE SHAFT TURN CYLINDER

Male shaft swing cylinder

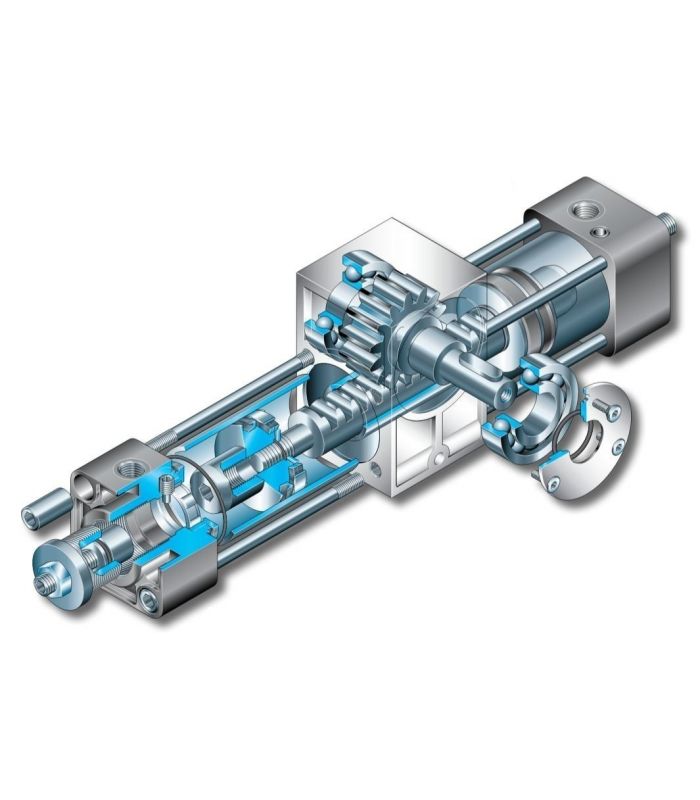

  • The rotary cylinders have been designed to transform the rectilinear movement characteristic of the pneumatic cylinder into rotary movement through a rack-pinion gear.
  • The cylinder adopts the same pneumatic damping system typical of the traditional cylinder and there can be a mechanical adjustment to adjust the angle by +/- 5°.
  • Double cushioned effect
  • Working pressure 1-10 bar.
  • Temperature -20 / 80ºC.
  • Compatible fluids: filtered compressed air.
  • Availability of diameters from 32 to 100 mm.
  • 3 turning positions. 90º-180º-360º

Buy online MALE SHAFT TURN CYLINDER at the best price

€422.65 (tax included)
€349.30 (tax excl.)
CHOOSE MODEL/COLOR
  • Ø32-90º
  • Ø32-180º
  • Ø32-360º
  • Ø40-90º
  • Ø40-180º
  • Ø40-360º
  • Ø50-90º
  • Ø50-180º
  • Ø50-360º
  • Ø63-90º
  • Ø63-180º
  • Ø63-360º
  • Ø80-90º
  • Ø80-180º
  • Ø80-360º
  • Ø100-90º
  • Ø100-180º
  • Ø100-360º
Reference:
50080010
Consult price for large quantities
Related products
INSTANT FITTING STRAIGHT TUBE UNION CYLINDRICAL THREAD INSTANT FITTING STRAIGHT TUBE UNION CYLINDRICAL THREAD

€1.23 (tax excl.)
€1.49 (tax included)
Instant fitting straight union tube cylindrical thread WORKING PRESSURE -0.99 / 10 bar. TEMPERATURE 0 / 60ºC. WIDE RANGE OF Ø 4-16 EASE OF CONNECTION CYLINDRICAL OR CONICAL THREAD NICKEL PLATED BRASS AND PBT BODY....
INSTANT FITTING ELBOW TUBE UNION CYLINDRICAL THREAD INSTANT FITTING ELBOW TUBE UNION CYLINDRICAL THREAD

€1.51 (tax excl.)
€1.83 (tax included)
WORKING PRESSURE -1/10 bar. TEMPERATURE 0 /- 60ºC. WIDE RANGE OF Ø 4-16 EASE OF CONNECTION CYLINDRICAL THREAD NICKEL PLATED BRASS AND PBT BODY. STEEL GRIP CLAMP I-301 PUSH RING IN POM RESIN
Description

CILINDRO DE GIRO EJE MACHOCILINDRO DE GIRO EJE MACHO

Product Details
50080010
Reference COLOR Price Add to cart
50080011 Ø32-180º
€394.80
50080013 Ø32-360º
€462.00
50080014 Ø40-90º
€388.50
50080015 Ø40-180º
€441.70
50080017 Ø40-360º
€527.80
50080018 Ø50-90º
€422.80
50080019 Ø50-180º
€475.30
50080021 Ø50-360º
€595.00
50080022 Ø63-90º
€529.20
50080023 Ø63-180º
€595.70
50080025 Ø63-360º
€733.60
50080026 Ø80-90º
€579.60
50080027 Ø80-180º
€660.80
50080029 Ø80-360º
€853.30
50080030 Ø100-90º
€751.80
50080031 Ø100-180º
€840.00
50080033 Ø100-360º
€1,050.00
50080010 Ø32-90º
€349.30
