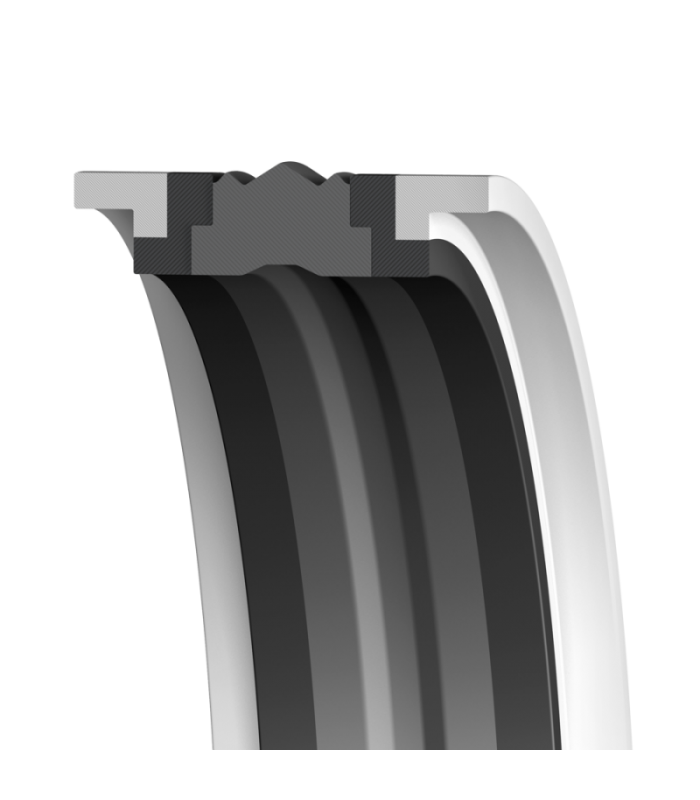

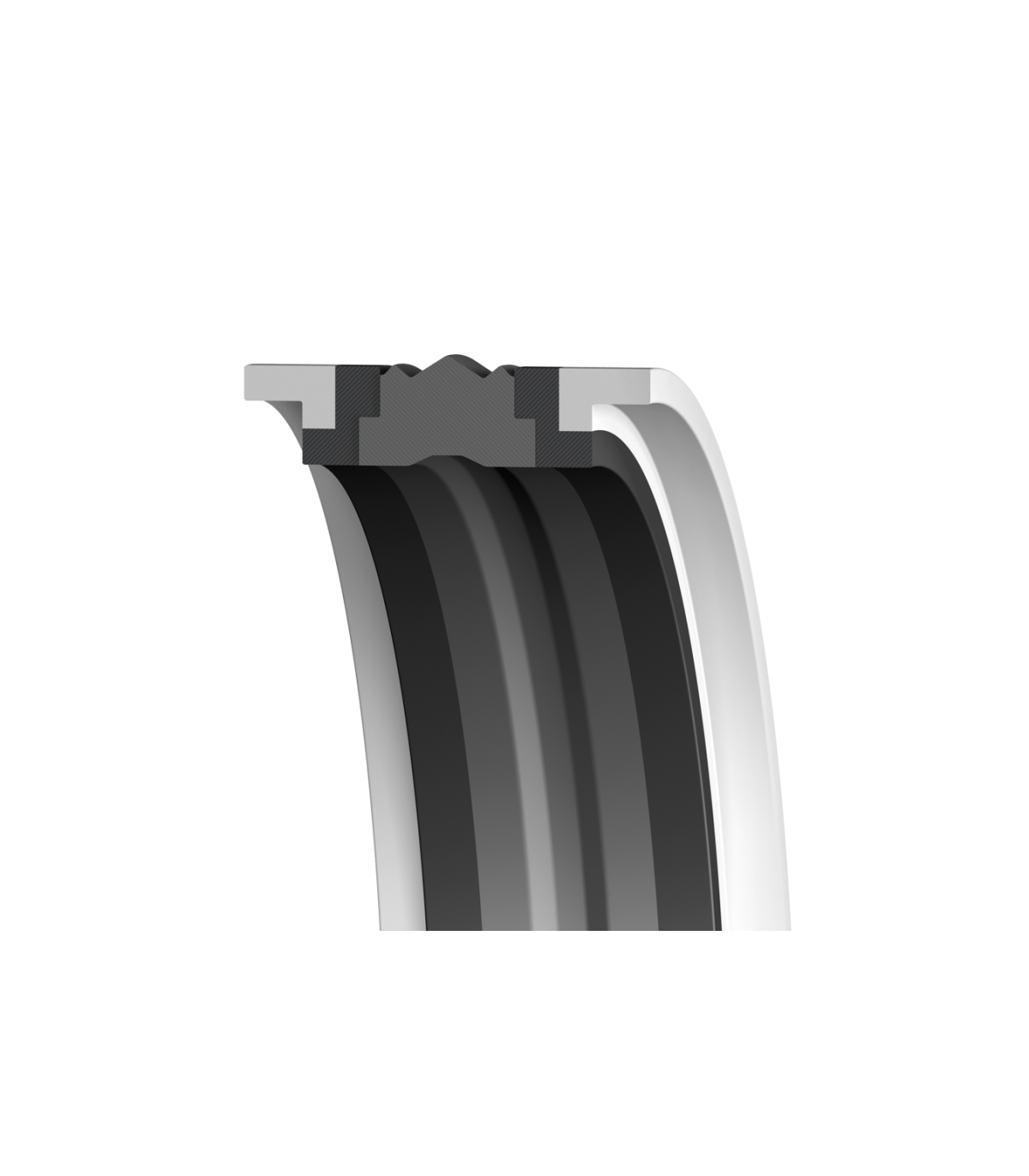

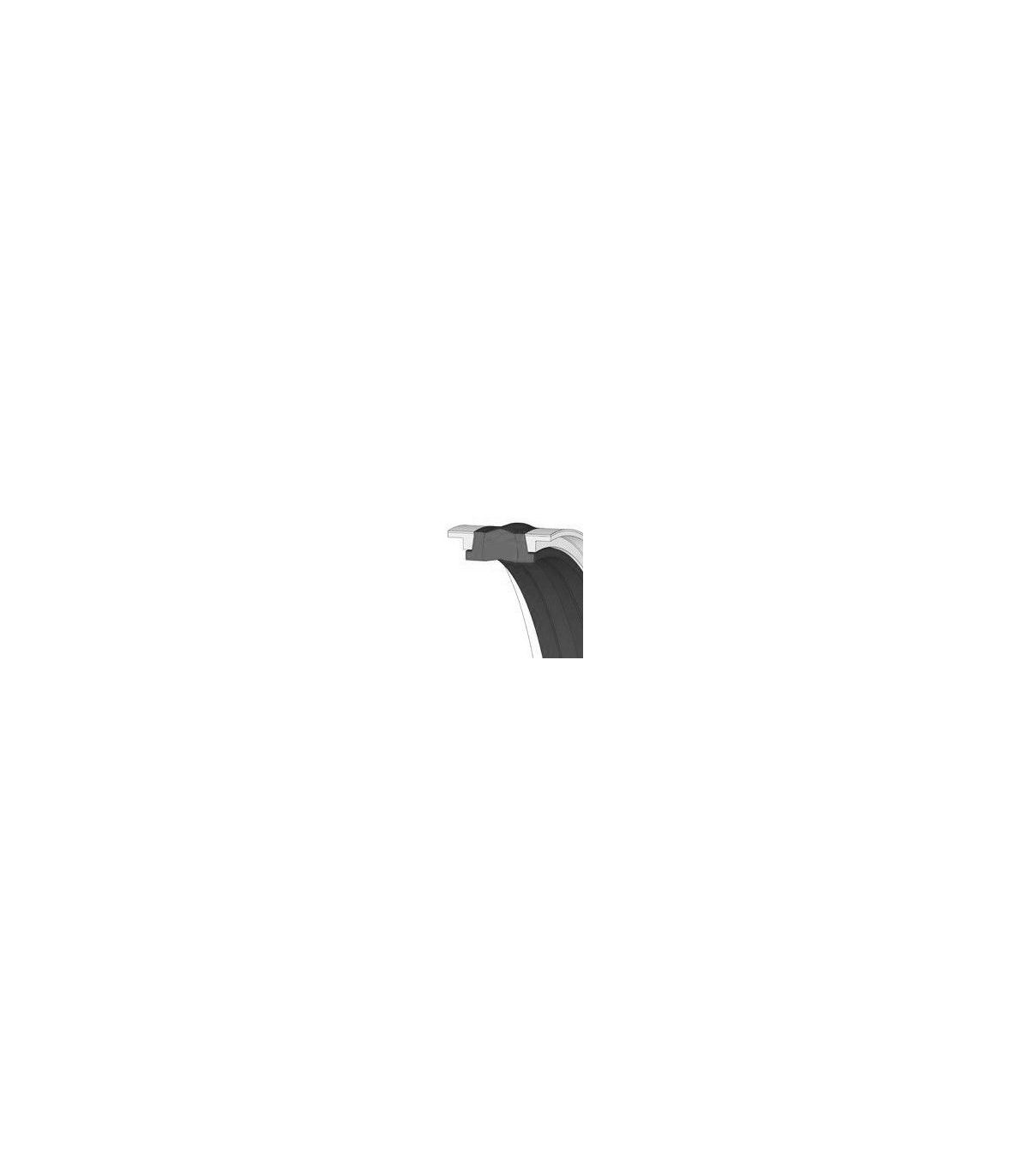

Double acting piston seal 5 pieces
This seal is used as a double-acting seal. The guide rings incorporated in the seal prevent the possibility of contact between the piston and the cylinder liner.
Technical data sheet:
Piston seal consisting of a NBR sliding ring, two extruded rings, and two guide rings.
Speed 0.5 m/s.
Temperature -30ºC / 100ºC
When selecting thickness, refer to the "L - H" housing
IF YOU DO NOT FIND THE DESIRED SIZE, CONTACT US
| Reference | INSIDE DIAMETER | EXTERNAL DIAMETER | THICKNESS | Price | Add to cart |
|---|---|---|---|---|---|
| 8039000 | 24 | 40 | 18 |
€9.60
|
|
| 8039001 | 30 | 40 | 12 |
€9.90
|
|
| 8039002 | 30 | 40 | 13 |
€7.50
|
|
| 8039003 | 32 | 40 | 16 |
€7.50
|
|
| 8039004 | 34 | 50 | 18 |
€8.40
|
|
| 8039005 | 34 | 50 | 20 |
€8.70
|
|
| 8039006 | 38 | 50 | 20 |
€8.40
|
|
| 8039007 | 45 | 55 | 12 |
€12.60
|
|
| 8039008 | 44 | 60 | 20 |
€11.40
|
|
| 8039009 | 47 | 63 | 18 |
€10.80
|
|
| 8039010 | 49 | 65 | 20 |
€11.40
|
|
| 8039011 | 50 | 70 | 22 |
€9.90
|
|
| 8039012 | 51 | 63 | 20 |
€9.30
|
|
| 8039013 | 66 | 80 | 22 |
€11.40
|
|
| 8039014 | 73 | 87 | 22 |
€12.60
|
|
| 8039015 | 81 | 95 | 22 |
€16.80
|
|
| 8039016 | 82 | 100 | 22 |
€20.10
|
|
| 8039017 | 90 | 115 | 22 |
€17.10
|
|
| 8039018 | 92 | 110 | 22 |
€13.50
|
|
| 8039019 | 96 | 110 | 22 |
€16.50
|
|
| 8039020 | 97 | 115 | 22 |
€12.90
|
|
| 8039021 | 101 | 115 | 22 |
€12.60
|
|
| 8039022 | 108 | 125 | 26 |
€13.80
|
|
| 8039023 | 110 | 135 | 25 |
€17.10
|
|
| 8039024 | 115 | 140 | 25 |
€18.30
|
|
| 8039025 | 125 | 160 | 25 |
€19.50
|
|
| 8039026 | 138 | 160 | 26 |
€21.60
|
|
| 8039027 | 130 | 160 | 25 |
€25.20
|
|
