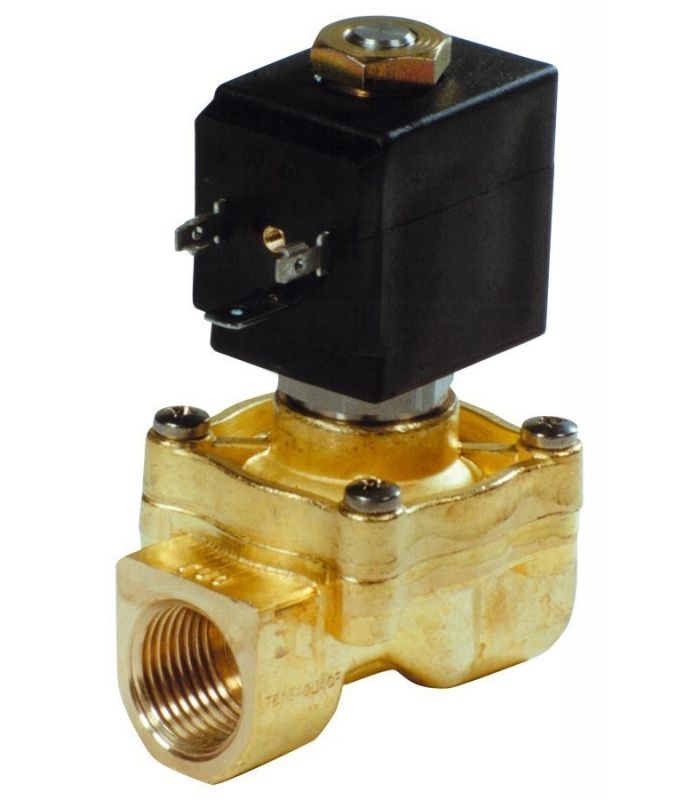

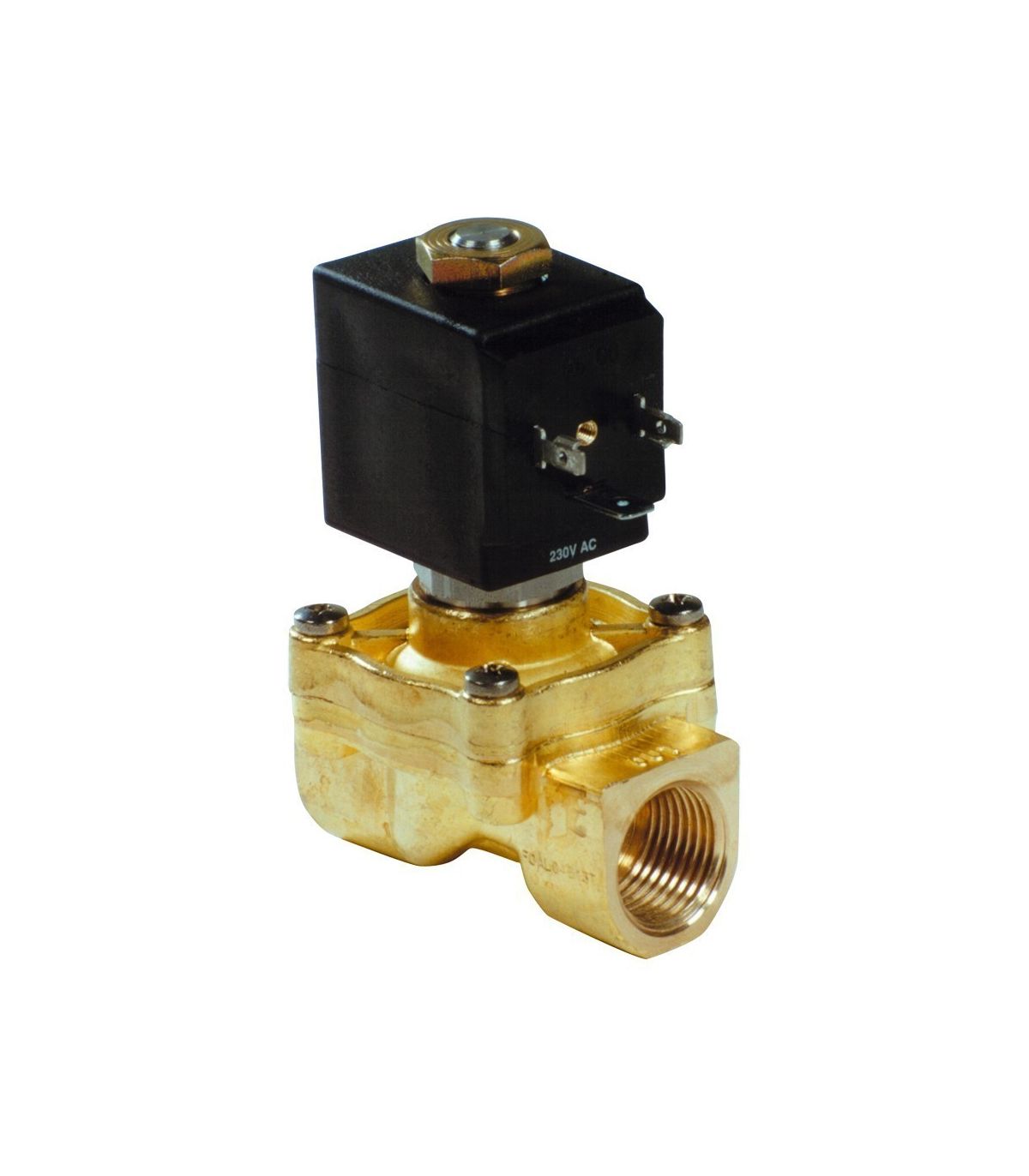

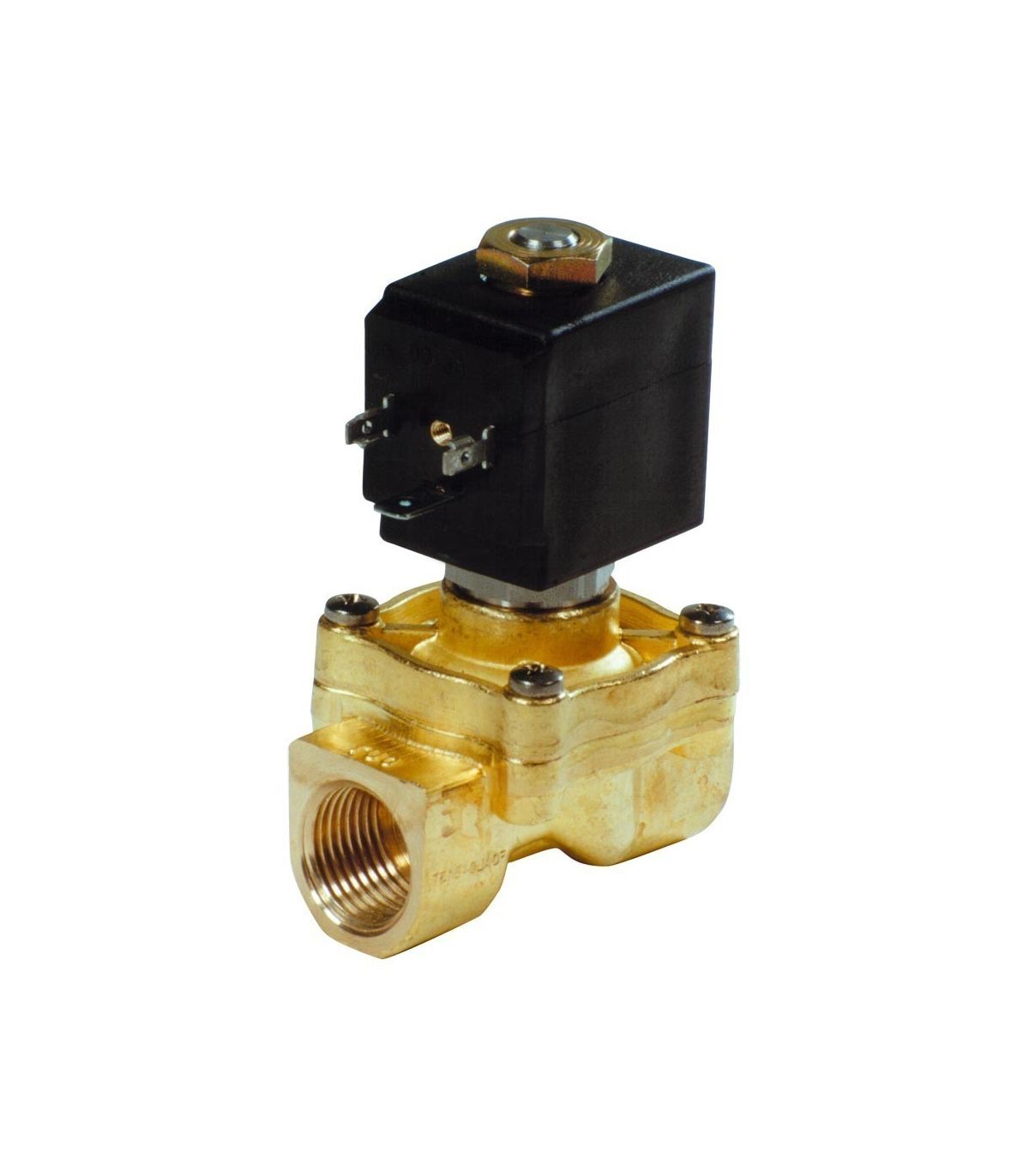

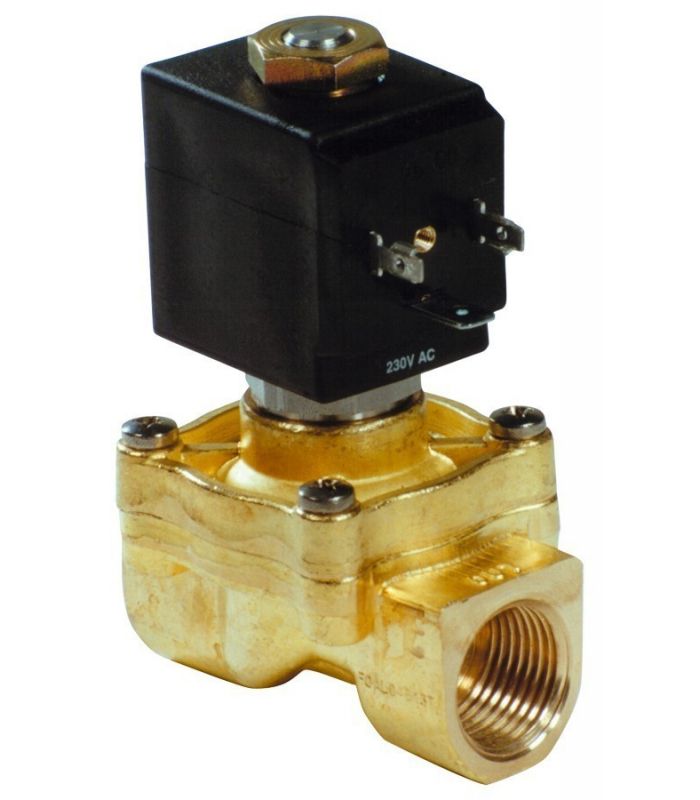

2/2 NC MIXED CONTROL SOLENOID VALVE AL24
2/2 NC MIXED CONTROL SOLENOID VALVE AL24
2/2 NC MIXED CONTROL SOLENOID VALVE AL24
2/2 NC MIXED CONTROL SOLENOID VALVE AL24

2/2 NC MIXED CONTROL SOLENOID VALVE AL24

  • Mixed or combined control solenoid valve. A differential pressure is not necessary for correct operation P min. = 0
  • This solenoid valve solves the problem of opening and closing fluids when the pressure is low or zero.
  • Mounting position, preferably horizontal.
  • It is possible to change the coil without having to dismantle the valve.
  • Various sealing gaskets depending on the fluid, nitrile, viton, EPDM
  • Applications: Compressed air, inert gases, diesel, steam, and in general all fluids compatible with the available sealing gaskets.
  • Maximum admitted viscosity: 5º Engler.
  • Coil type C3
  • Supplied without coil.

Buy online 2/2 NC MIXED CONTROL SOLENOID VALVE AL24 at the best price

€56.70 (tax included)
€46.86 (tax excl.)
SELECT THREAD
  • 3/8"
  • 1/2"
  • 3/4"
  • 1"
Reference:
60430013
Consult price for large quantities
Description

ELECTROVALVULA 22 N.C. DE MANDO MIXTO AL24

Product Details
60430013
Reference THREAD Price Add to cart
60430019 1/2"
€47.34
60430025 3/4"
€58.50
60430029 1"
€95.26
60430013 3/8"
€46.86
