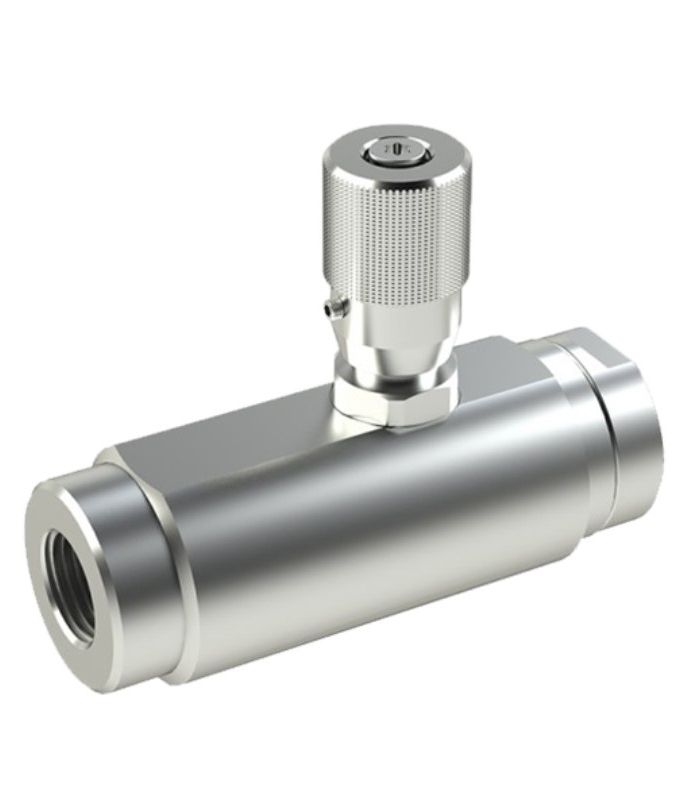

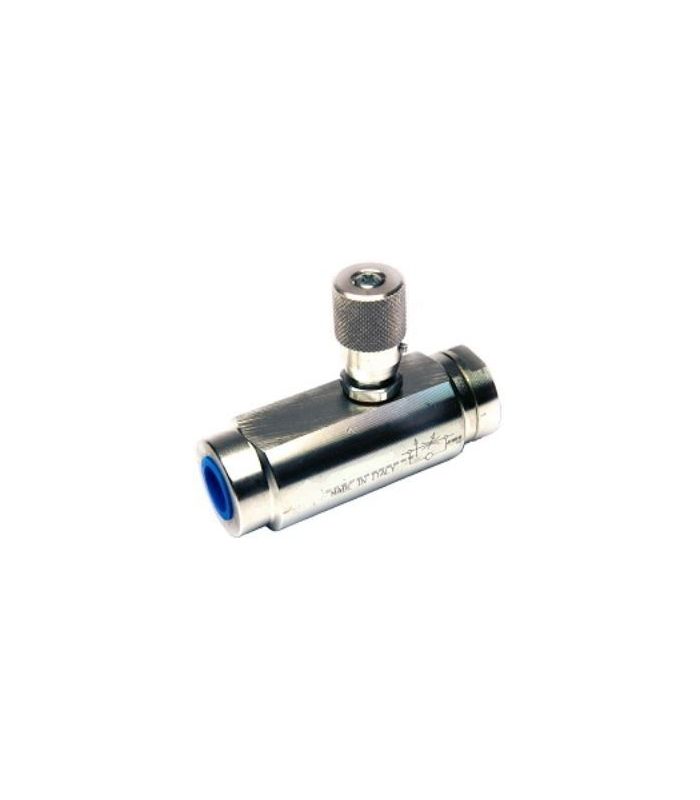

COMPENSATED HYDRAULIC FLOW REGULATOR
COMPENSATED HYDRAULIC FLOW REGULATOR
COMPENSATED HYDRAULIC FLOW REGULATOR
COMPENSATED HYDRAULIC FLOW REGULATOR
COMPENSATED HYDRAULIC FLOW REGULATOR
COMPENSATED HYDRAULIC FLOW REGULATOR

COMPENSATED HYDRAULIC FLOW REGULATOR

Compensated 2-way flow regulator. Two chokes in series are present in the valve. The first corresponds to the one that is adjustable using the knob; The second, controlled by the pressure prior to and following the first throttle, guarantees a constant pressure jump between the previous phase and the phase following the adjustable throttle. Under these conditions, the preset flow value remains constant within a tolerance field of ±2% of the full scale flow for the maximum pressure variation between the inlet and outlet chambers of the valve.

  • Made of steel.
  • Pressure up to 300 bar.
  • Flow rates up to 45 liters per minute.
  • Available in 3 threads. 1/4 - 3/8 - 1/2

Buy online COMPENSATED HYDRAULIC FLOW REGULATOR at the best price

€46.46 (tax included)
€38.40 (tax excl.)
SELECT THREAD
  • 1/4"
  • 3/8"
  • 1/2"
Reference:
49370001
Consult price for large quantities
Related products
ISO-3322 HYDRAULIC CYLINDER FRONT FLANGE AS (Check price) ISO-3322 HYDRAULIC CYLINDER FRONT FLANGE AS (Check price)

€0.00 (tax excl.)
Hydraulic cylinder ISO-3322 front flange AS (check price) The ISO-3322 AS front flange hydraulic cylinder is used to provide a force through a linear stroke. This energy is obtained from a pressurized hydraulic fluid,...
BUNA METAL JOINT BUNA METAL JOINT

€0.21 (tax excl.)
€0.25 (tax included)
Metal-buna gasket Metal cover, NBR inner part Used for high pressure hydraulic installations.
MANOMETER Ø63 SIDE THREAD 1/4" WITH GLYCERINE MANOMETER Ø63 SIDE THREAD 1/4" WITH GLYCERINE

€10.07 (tax excl.)
€12.18 (tax included)
A Ø63 1/4" SIDE THREAD PRESSURE GAUGE WITH GLYCERINE is an instrument used to measure the pressure of gases or liquids contained in a closed system in a multitude of applications (hydraulic, pneumatic, water,...
MALE SPLICE FITTING MALE SPLICE FITTING

€0.55 (tax excl.)
€0.67 (tax included)
Conical closure fitting with 60º BSP thread. Made of carbon steel. White zinc plated. Working temperature -40 / 150ºC. Working pressure 250 bar.
VNKP HYDRAULIC ORBITAL MOTOR (OMP) VNKP HYDRAULIC ORBITAL MOTOR (OMP)

€187.85 (tax excl.)
€227.30 (tax included)
VNKP OMP hydraulic motor with great power and low weight. It can be used in series or parallel. Speeds from 50 to 400 cm3/rev. Oil temperature between 20ºC and 60ºC max 90ºC. A 10-30 micron return filter is...
Description

2-way compensated flow regulator

Product Details
49370001
Reference THREAD Price Add to cart
49370001 1/4"
€38.40
49370002 3/8"
€45.50
49370003 1/2"
€66.30
