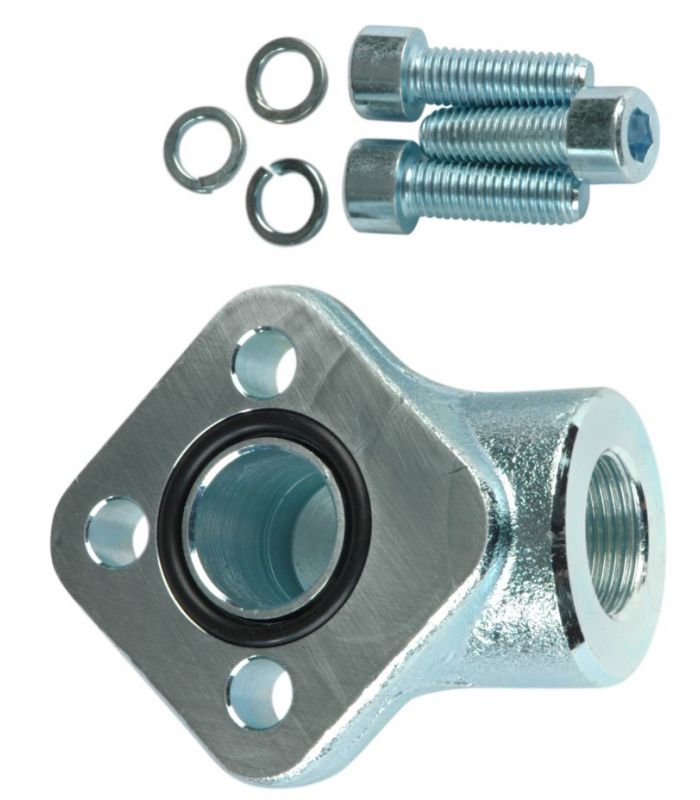

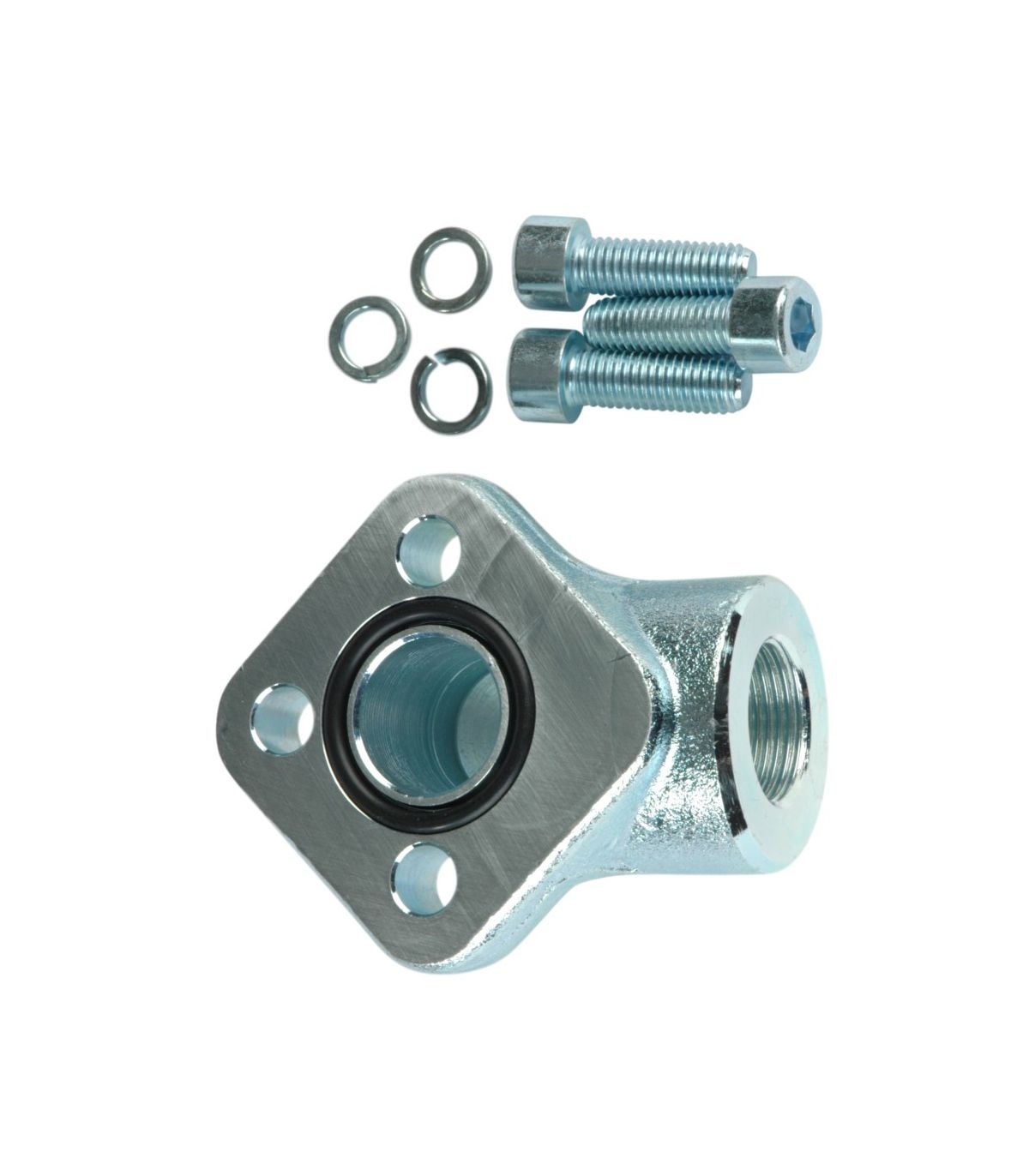

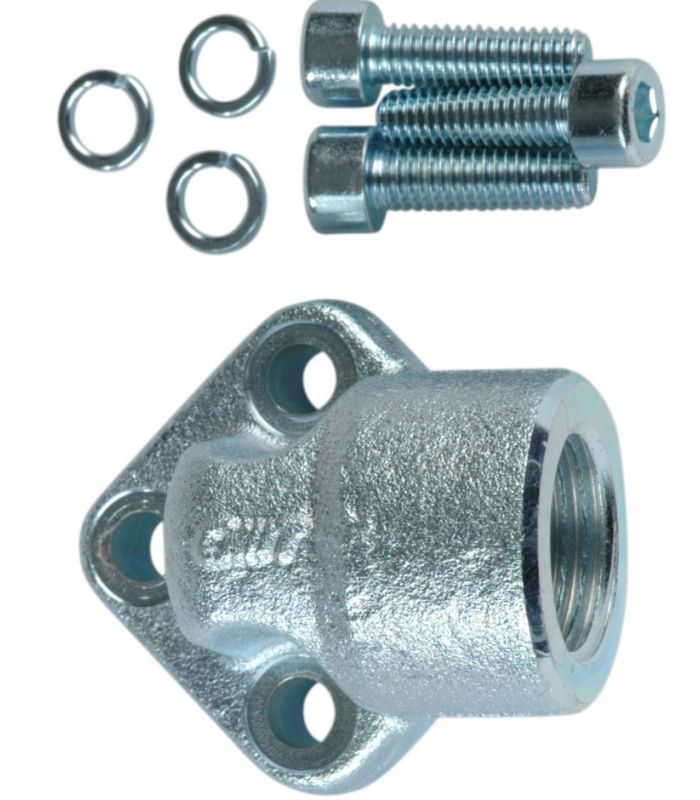

An RG Pump Elbow Flange is used to connect an RG type hydraulic pump to a piping system. It can be useful in applications where space is limited or where the pump needs to be installed in a specific position.
This flange features an elbow or angle shape, allowing the fluid flow to be directed in a direction other than the direct outlet of the pump.
The flange bolts directly to the RG pump outlet.
RG pump elbow flanges are used in a wide variety of applications including industrial hydraulic systems, mobile equipment or refrigeration systems.
Technical data sheet:
Made of steel
Pressure 315 bar
Supplied with screws and O-ring
Thread according to ISO-1179-1
Size refers to the center-to-center distance of the screws
If you need help choosing the right RG type pump elbow flange for your application, please feel free to contact us.
| Reference | THREAD | SIZE | Price | Add to cart |
|---|---|---|---|---|
| 480901 | 3/8" | 26 |
€5.31
|
|
| 480902 | 3/8" | 30 |
€5.31
|
|
| 480903 | 1/2" | 30 |
€5.31
|
|
| 480904 | 1/2" | 40 |
€10.02
|
|
| 480905 | 3/4" | 40 |
€10.02
|
|
| 480906 | 3/4" | 51 |
€15.25
|
|
| 480907 | 1" | 51 |
€15.25
|
|
| 480908 | 1" | 56 |
€14.42
|
|
| 480909 | 1-1/4" | 62 |
€28.22
|
|
| 480910 | 1-1/2" | 72 |
€29.79
|
|
| 480911 | 2-1/2" | 92 |
€78.17
|
|
