JOINTS AND BALL JOINTS FOR CYLINDERS

Filter By
COMPENSATING BALL ALIGNMENT ISO 15552

COMPENSATING BALL ALIGNMENT ISO 15552

€21.56 (tax excl.)
€26.09 (tax included)
Alignment compensating ball joint. Prevents breakage of the cylinder rod in case of misalignment. Made of galvanized steel. Steel ball joint and bearing. Angular movement 10º Radial tolerance up to 2 mm. Selection by...
SHAFT BALL ISO-15552

SHAFT BALL ISO-15552

€5.75 (tax excl.)
€6.96 (tax included)
Manufactured according to DIN ISO 12240-4 K SERIES (DIN 648-K) standard Self-locking, maintenance-free. Reduced clearance increase during operation. Possibility of operation in contact or immersed in oil. Operating...
STRAIGHT BALL JOINT ISO 15552

STRAIGHT BALL JOINT ISO 15552

€24.44 (tax excl.)
€29.57 (tax included)
Coupling for joining cylinder rods and machine components. It allows radial and angular deviations ensuring the longevity and smoothness of operation of the elements joined by the self-aligning joint. Construction of...
STRAIGHT BALL JOINT

STRAIGHT BALL JOINT

€18.69 (tax excl.)
€22.61 (tax included)
Coupling for joining cylinder rods and machine components. It allows radial and angular deviations ensuring the longevity and smoothness of operation of the elements joined by the self-aligning joint. Construction of...
BALL JOINT STEM ISO-6432

BALL JOINT STEM ISO-6432

€5.75 (tax excl.)
€6.96 (tax included)
ISO-6432 rod end It is a mechanical component specifically designed to connect the rod of an ISO-6432 pneumatic cylinder to other elements of a machine or system. Its main function is to allow angular movement of the...
SCROLL DISPLAY R 1:05

SCROLL DISPLAY R 1:05

€150.00 (tax excl.)
€181.50 (tax included)
Scroll display. It is used for the direct reading and regulation of a displacement or angle, obtained by rotating a maneuver axis. Height of the figures 6 mm. Ø20 mm hole. 5-digit indicator. Indifferent mounting...

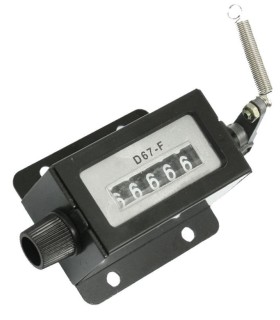

MECHANICAL COUNTER

MECHANICAL COUNTER

€35.00 (tax excl.)
€42.35 (tax included)
Mechanical blow counter. Number of figures 5 Stroke intake per minute approx. 400 Position of the lever on the variable axis. Maximum oscillation angle 45º. Automatic return to the original position after each...

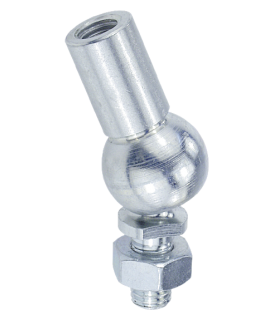

AXIAL JOINT

AXIAL JOINT

€13.00 (tax excl.)
€15.73 (tax included)
Supplied with nut.
ANGULAR JOINT

ANGULAR JOINT

€5.00 (tax excl.)
€6.05 (tax included)
Din-71802 Standard Made of zinc plated steel. There is a version with a safety ring, ask for information.
Showing 1-9 of 9 item(s)

Buy JOINTS AND BALL JOINTS FOR CYLINDERS online at the best price. Transmission of rotary or rectilinear movement. Widely used to provide movement to pneumatic cylinders in their respective fixings. Also used to prevent alignment offsets. They can be made of steel or stainless steel. Wide range of fixings, both for the cylinder rod and at the rear.
